City

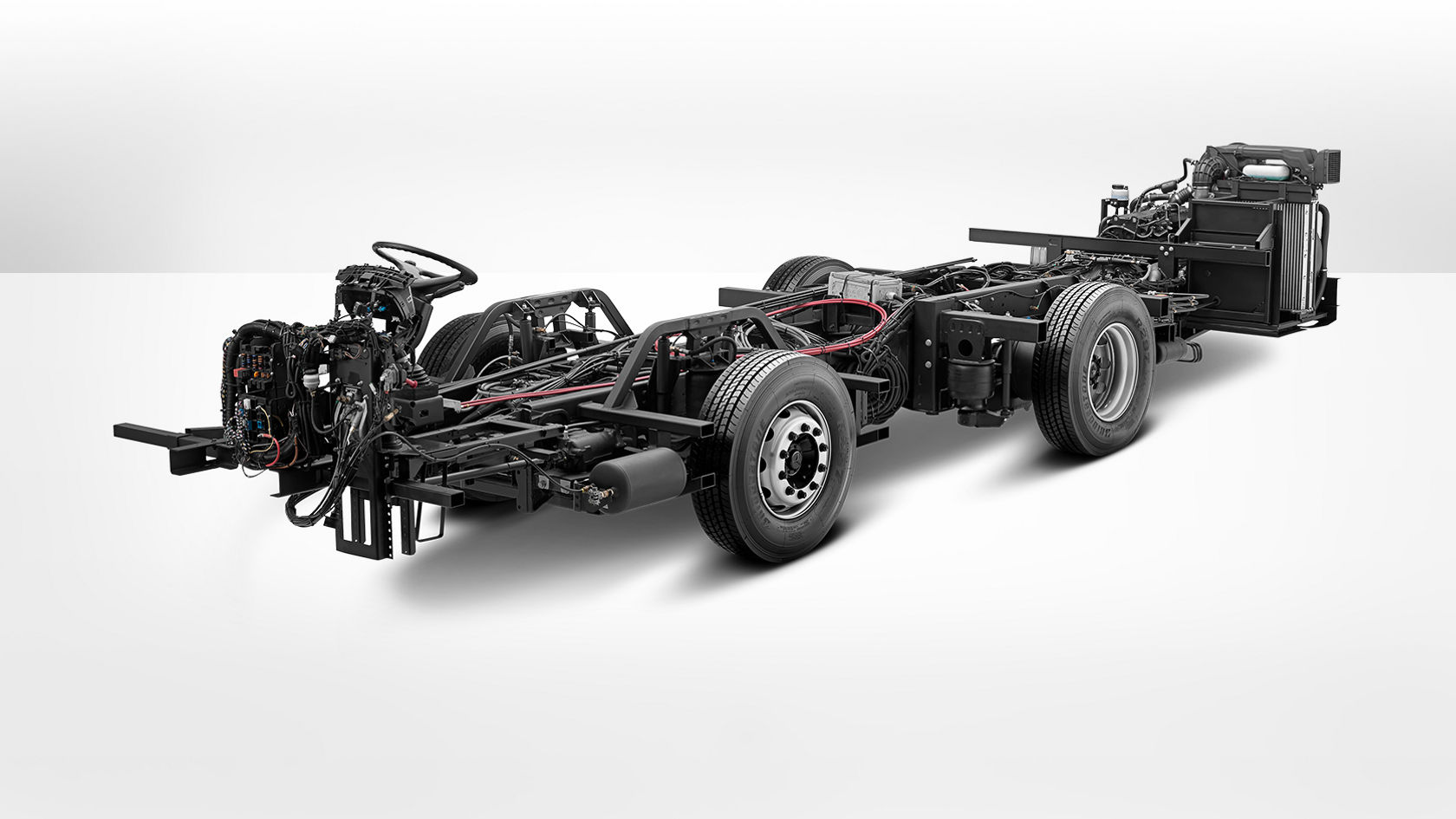

Developed for city services, the O 500 U 1826 chassis (low entry), which incorporates all the benefits of Mercedes-Benz technology- is a robust and highly durable vehicle suited to the most severe operating service conditions. It was developed for bodies up to 13.2 meters long. The O 500 U 1826 chassis provides maximum passenger comfort and safety thanks to its front and central sections levelled at 370 mm above the ground, to its full air suspension, to its left and right (optional) side kneeling function and to its automatic transmission with integrated retarder. The OM 926 LA BlueTec 5 (Euro 5) electronically managed engine features a new output ratio (256 Hp), which gives it superior performance in intense high volume city traffic. Thanks to these features, the O 500 U 1826 chassis fully meets today’s passenger transport demands.

O 500 U 1826 Euro 5 Automatic

Technical data.

Engine

Make / ModelOM926
Capacity (cm3)7200
Layout6 cylinder inline
TypeTurbo
Power - kW @ r/min188 @ 2200
Torque - Nm @ r/rim900 @ 1200

Transmission

Make / ModelVoith Diwa 6
TypeSynchromesh
ShiftAutomatic
No of Forward Gears4
High / Low Ratios5.200 -0.700

Dimensions (mm)

Overall Height1596
Overall Length11870
Overall Width2515
Front Overhang2570
Rear Overhang3350
Wheelbase5950

Mass (kg)

Manufacturer's Gross Vehicle Mass (GVM)18500
Manufacturer's Gross Combination Mass (GCM)18500
Tare (T)6146
Manufacterer's Rear Axle Weight11500
Manufacterer's Front Axle Weight7000

Drive Axle

Reduction TypeSingle
Final Ratio5,857

Brakes

Typefull air dual
Frontdisc
Reardisc
Anti-lock Braking System (ABS)Yes

Fuel

Tank Capacity (l)per required

Tyres

Size295/80R22.5
